CB330
28′ twin 150 Yamaha
110 x 22 x 4.5
GRT/NRT 98/67
Deck Area 62 x 18
Deck Cargo 25 TON
Speed 22 KTS
CB319
Dimensions:
Length: 30’
Beam: 9’ 1”
Bridge Clearance: 7’ 9”
Draft:
10” (Motors up) / 18” (Motors down)
Fuel Capacity:
100 Gallons
Weight:
Dry Weight: 8,500 lbs
Payload (Fuel + People + Carg0): 2,250 lbs

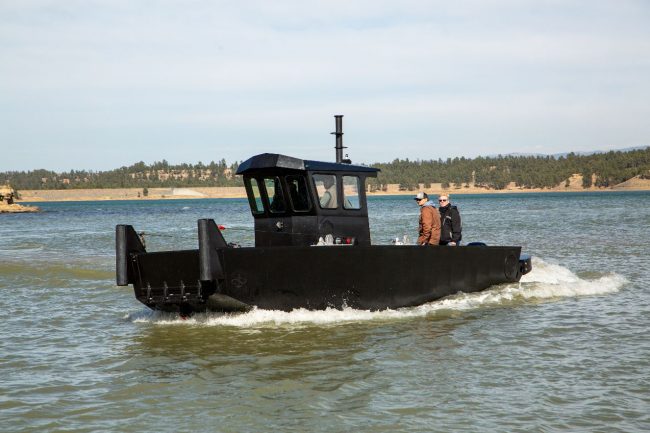

The boat is made of HDPE (High Density Polyethylene) ,and is exceptionally durable. Nothing will stick to it, it resists corrosion, and the hull is low maintenance. It is water tested in both fresh and saltwater.
It can work as a push, or transport vessel, as it has a cabin that can be raised and a drop bow.
two pictures: one of the cabin down; one up. The up version is for inland use only, not bay or wave.
CB328
CB327
1968 40’ crew boat
Camcraft hull
(2) 671 Detroit
CB326
2006
DIMENSIONS
LENGTH – 27FT
BEAM – 8FT
HULL DEPTH – 3FT
WORKING DRAFT – 1.5FT
MACHINERY
MAIN ENGINES – TWIN 150HP HONDA
GENERATOR – 3KW HONDA
STEERING – HYDRAULIC
A/C AND HEAT
CAPACITIES
FUEL CAPACITY – 90 GALLONS
PASSENGERS – 7 PLUS OPERATOR
CB321
195 x 35 x 13.15
Clear deck 124 x 28
Clear Deck area 3,472 sq. ft
(6) Cummins KTA 38 M2
(2) Gens 75kW 120/208 VAC, 3 phase, 60hz
98 Pass
Berth: 8 person / 4 cabins
CB320
195 x 35 x 13.15
Clear deck 124 x 28
Clear Deck area 3,472 sq. ft
(6) Cummins KTA 38 M2
(2) Gens 75kW 120/208 VAC, 3 phase, 60hz
92 pass
Berth: 8 person / 4 bunkrooms
CB329
170 x 30 x 6.5
98 ton
Clear Deck 95 x 25 ;
Clear Deck area 2,352 sq ft
(6) Cummins K19 M3
4,080 HP
(2) Cummins Gen 6BT @ 50kW
83 Pass
Berth: 6 person / 3 bunkrooms
CB 318
JUST IN NEW LISTING!
165 x 28 x 6 Crewboat for sale
98 tons
98x 24 clear deck
2,352 clear deck area
(5) Cummins KTA 19M4
(2) Cummins 6 BT 50kW
3,400 hp
83 pass plus 4 crew
Berths: 8 person / 4 cabins
Contact for more information and price.
CB316
Length Overall: 170’
Beam: 28’
Depth: 13’
Light Draft: 5’ 6”
Loaded Draft: 9’ 6”
5 Cummins KTA38 6750 BHP Main Engines
5 Twin Disc 6650 Ratio 2.5:1 Reduction Gears
2 Cummins 6BT5.9 75KW Generators
1 Cummins 6CTA Bow Thruster
Elkhort 8393 Fire Monitor
Contact for additional information and price
CB315
Length Overall: 165’
Beam: 30’
Depth: 12’
Light Draft: 5’ 1”
Loaded Draft: 6’ 6”
Four – KTA38M Cummins,
Total 1350BHP Each
Contact for additional information and price
CB314
Length Overall: 140’
Beam: 26’
Depth: 12’
Light Draft: 7’ 0”
Loaded Draft: 9’ 0”
Four Caterpillar 3412 C Main Engines
Total 3,300 HP
Two 40 KW GM 371 Generators
Contact for additional information and price
CB313
Length Overall: 135’
Beam: 26’
Depth: 12’
Light Draft: 7’ 0”
Loaded Draft: 9’ 0”
Four Caterpillar 3412 Main Engines,
Total 3,056 HP
Contact for more information and price
CB306
Built 2003 by C&G Boat Works US Flag
USCG subchapter T ABS Load Line
(4) CAT 3512B Main Engines/6300 HP 125hp bow thruster
65 Passengers 100’ x 25’ deck area/225 tons
35,386 gallons fuel 50,808 gallons potable water
7010 grey water 6 staterooms/12 berths
196 cu ft walk in cooler 1000 gpm fire monitor
8935 average hours on main engines
CB305
Built 2003 by C&G Boat Works US Flag
USCG subchapter T ABS class/ABS loadline
(4) Cummins KTA38M-2 Main Engines/4500 HP 75hp bow thruster
65 Passengers 100’ x 25’ deck area/230 tons
35,386 gallons fuel 50,808 gallons potable water
7010 grey water 6 staterooms/12 berths
196 cu ft walk in cooler 1000 gpm fire monitor
Only 2728 average hours on Main Engines
CB298
Size: 105’ x 22’
Type: Aluminum Crew boat
CB297
1999
142′ x 29′ x 14′
Clear Deck 87′ x 25′
225LT
CB296
2000
142′ x 29′ x 14′
Clear Deck 87′ x 25′
225LT
CB295
150′ x 30′ x 6.5′
Clear Deck 95′ x 25′
CB294
2002
142′ x 29′ x 14′
Clear Deck 87′ x 25′
CB293
2001
142 x 29 x 14
Clear Deck 87′ x 25′
227 LT
CB289
Year 2007
40 x12 x 5
Yamaha 4 Stroke
500Hp
3KW Honda Generator
Hydraulic steering
A/C and Heat
350 Gallons Fuel Capacity
60 Gallons Water Capacity
10+ Passenger
15×10 Cargo Deck Space W/ 5,000 lbs Capacity
Equip with (2) Remote control Jabsco searchlights,
(3) Type B1…5# Fire Extinguisher, (11) type 1 Lifejackets, 2-1500 GPH Rule Automatic Bilge Pump
Call For Price.
CB285
LENGTH OVERALL 195 ft 59 m
LENGTH BP 172 ft 52 m
BEAM 35 ft 11 m
DEPTH 13.15 ft 4 m
LIGHT DRAFT 7 ft 2.13 m
LOADED DRAFT 9.5 ft 2.9 m
SUMMER FREEBOARD 3.65 ft 1.1 m
LIGHTSHIP 215 LT 219 MT
DEADWEIGHT 410 LT 417 MT
Call for more information and price.
CB284
157′ X 29′ X 31.5′
Depth 14′, Light Draft 5′ 9″, Max Draft 9′ 3″, Air Draft 42′,
Lightship Displacement 165.4 LT, Max Displacement 490 LT,
Light Boat Speed 25 KTS, Loaded Speed 21 KTS, Clear Deck 100′,
65 Passengers
CB283
160’x55’x30′
Vessel Particulars
Depth 13′
Light Draft’ 7′
Loaded Draft 9.86′
Summer Freeboard 7′
Light Ship 195 LT
Deadweight 251 LT
Cargo Area
Tonnage 190 LT
Strength 256 LB/ft
Length 76.5 ‘
Width 76.5′
Clear Area 1,798’
GRT/NRT 93 US Ton/ 63 US Ton
Max Speed 27 KNT
Cabin/Berths 7/14
Passengers 82 Business Class/ 11 VIP
For More Information and Price Please call.
:
CB276
1998- 195′ crew boat x 35′
6 KTA 38m Cummins engines, 1350 BHP each
Max speed 27 kt. cruising 22 kt.
Located in South Louisiana
Call for more information and price
CB273
YEAR BUILT: 2008
| DIMENSIONS | |
| LENGTH | 40FT |
| BEAM | 10FT |
| HULL DEPTH | 4FT |
| WORKING DRAFT | 1.5FT |
| MACHINERY | |
| MAIN ENGINES | YAMAHA 4 STROKE |
| MAX HP | 500HP |
| GENERATOR | 6.5KW HONDA |
| STEERING | HYDRAULIC |
| 2 A/Cs and HEATERS |
| CAPACITIES | |
| FUEL CAPACITY | 350 GALLONS |
| FRESH WATER | 55 GALLONS |
| PASSENGERS | 10 PLUS OPERATOR |
| 15X10 CARGO DECK WITH 8,000# CAPACITY |
| SAFETY EQUIPMENT | |
| SEARCHLIGHT | 2 REMOTE CONTROL JABSCO |
| FIRE EXTINGUISHER | 3 TYPE B1—5# |
| LIFEJACKETS | 11 TYPE 1 |
| BILGE PUMP | 2-1500 GPH RULE AUTOMATIC |
| 24″ LIFE RING | |
| SIX MAN FIRST AID KIT | |
| FLARE GUN | |
| ANCHOR WITH 250′ 3/4″ NYLON ROPE | |
| WINDSHIELD WIPER | |
| ONE NAUTICAL MILE HORN |
| ELECTRONICS | |
| 2 VHF | |
| RADAR | |
| SONAR | |
| GPS | |
| AM/FM CD PLAYER | |
| BOATRACS |
CB271
YEAR BUILT: 2008
| DIMENSIONS | |
| LENGTH | 33FT |
| BEAM | 10FT |
| HULL DEPTH | 3FT |
| WORKING DRAFT | 1.5FT |
| MACHINERY | |
| MAIN ENGINES | YAMAHA 4 STROKE |
| MAX HP | 500HP |
| GENERATOR | 3KW HONDA |
| STEERING | HYDRAULIC |
| A/C AND HEAT |
| CAPACITIES | |
| FUEL CAPACITY | 130 GALLONS |
| PASSENGERS | 10 PLUS OPERATOR |
| SAFETY EQUIPMENT | |
| SEARCHLIGHT | 2 REMOTE CONTROL JABSCO |
| FIRE EXTINGUISHER | 2 TYPE B1—5# |
| LIFEJACKETS | 11 TYPE 1 |
| BILGE PUMP | 2-1500 GPH RULE AUTOMATIC |
| 24″ LIFE RING | |
| SIX MAN FIRST AID KIT | |
| FLARE GUN | |
| ANCHOR WITH 250′ 3/4″ NYLON ROPE | |
| WINDSHIELD WIPER | |
| ONE NAUTICAL MILE HORN | |
| FOAM FILLED HULL |
| ELECTRONICS | |
| 2 VHF | |
| RADAR | |
| SONAR | |
| GPS |
CB270
YEAR BUILT: 2006
| DIMENSIONS | |
| LENGTH | 30FT |
| BEAM | 10FT |
| HULL DEPTH | 3FT |
| WORKING DRAFT | 1.6FT |
| MACHINERY | |
| MAIN ENGINES | YAMAHA 250 4 STROKE |
| MAX HP | 500HP |
| STEERING | DUAL HYDRAULIC |
| 3KW HONDA GENERATOR | |
| A/C AND HEAT |
| CAPACITIES | |
| FUEL CAPACITY | 130 GALLONS |
| PASSENGERS | 10 PLUS OPERATOR |
| SAFETY EQUIPMENT | |
| FIRE EXTINGUISHER | 2 TYPE B1—5# |
| LIFE JACKETS | 10 TYPE 1 |
| SEARCH LIGHT | |
| 24″ LIFE RING | |
| SIX MAN FIRST AID KIT | |
| FLARE GUN | |
| ANCHOR WITH 150 FT 1/2 IN NYLON ROPE | |
| 2 BILGE PUMP | |
| WINDSHIELD WIPER | |
| ONE NAUTICAL MILE HORN |
| ELECTRONICS | |
| RADAR | FURRNO |
| SONAR | GARMIN |
| GPS | GARMIN |
| 2 VHF |
CB190
1974 – 105′ x 22′ Crew Boat
Clear Deck – 50′ x 20′, 3 – 12 -71 GM w/New Twin Disc 514 – 2:1 Gears
Speed 25 Kts
Call for Price
